Sick KTM-WN117A1P Contrast sensors

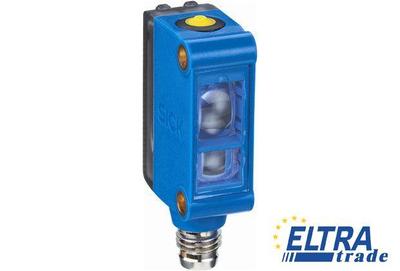

Sick KTM-WN117A1P
Item Number: KTM-WN117A1P
  • Small, tried-and-tested housing, also available in stainless steel
  • High grayscale resolution
  • Very large dynamic range means reliable detection of contrasts on glossy materials
Total price: 215.18
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1061787
Fieldbus interface:IO-Link
Ambient operating temperature:-10 °C ... +55 °C
Protection class:III
Housing design (light emission):Rectangular
IO-Link functions:Standard functions
Light spot size:1.5 mm x 6.5 mm
Switching mode:NPN
Enclosure rating:IP 67, IP 67
Sensing distance tolerance:± 3 mm
Output current Imax.:50 mA
Type of light:Visible blue light, Visible green light, Visible red light
Ambient storage temperature:-20 °C ... +75 °C
Dimensions (W x H x D):31.5 mm x 21 mm x 12 mm
Housing material:ABS, Plastic
UL File No.:NRKH.E348498 & NRKH7.E348498
Shock load:According to IEC 60068
Input, teach-in (ET):NPN: Teach: U < 2 V, Run: UV- 2 V or open
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Switching frequency :15 kHz
Light spot direction :Vertical
Sensing distance:12.5 mm
Jitter:15 µs
Ripple :≤ 5 Vpp
Supply voltage:12 V DC ... 24 V DC
Retention time (ET):28 ms, non-volatile memory
Wave length:470 nm, 525 nm, 625 nm
Teach-in mode:2-point teach-in static/dynamic + proximity to mark
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Max. web speed tech-in (dynamic):1 m/s
Response time :35 µs
Connection type:Connector M8, 4-pin
Output function:Light/dark switching
Light source :LED
Power consumption :< 50 mA
Weight:20 g
