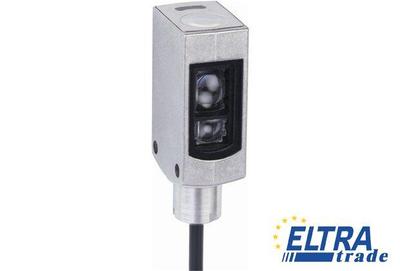

Sick KTM-WP1A7A2V Contrast sensors

Sick KTM-WP1A7A2V
Item Number: KTM-WP1A7A2V
  • Small, tried-and-tested housing, also available in stainless steel
  • High grayscale resolution
  • Very large dynamic range means reliable detection of contrasts on glossy materials
261.44
Quantity
-
+
Total price: 261.44
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1062147
Max. web speed tech-in (dynamic):1 m/s
Jitter:15 µs
Type of light:Visible blue light, Visible green light, Visible red light
UL File No.:NRKH.E348498
Light source :LED
Sensing distance tolerance:± 3 mm
Weight:70 g
Supply voltage:12 V DC ... 24 V DC
Light spot direction :Vertical
Light spot size:1.5 mm x 6.5 mm
Response time :35 µs
Enclosure rating:IP 67, IP 67
IP 69K

, IP 69K
Shock load:According to IEC 60068
Input, teach-in (ET):PNP: Teach: U = 10,8 V ... < UV, Run: U < 2 V or open
Ambient storage temperature:-30 °C ... +75 °C
Sensing distance:11 mm
Power consumption :< 50 mA
Switching mode:PNP
Output function:Light/dark switching
Retention time (ET):28 ms, non-volatile memory
Ambient operating temperature:-30 °C ... +70 °C
Housing material:Stainless steel, Stainless steel 316L
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Fieldbus interface:IO-Link
Protection class:III
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Dimensions (W x H x D):48.6 mm x 22.2 mm x 15.25 mm
Ripple :≤ 5 Vpp
Housing design (light emission):Rectangular
Teach-in mode:2-point teach-in static/dynamic + proximity to mark
Connection type:Cable with connector M12, 4-pin
Switching frequency :15 kHz
Output current Imax.:50 mA
Wave length:470 nm, 525 nm, 625 nm
