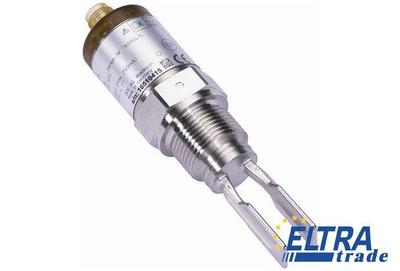

Sick LFV200-XXHCNTPM Level sensors

Sick LFV200-XXHCNTPM
Item Number: LFV200-XXHCNTPM
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
375.40
Quantity
-
+
Total price: 375.40
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036534
Measurement:Switch
Temperature drift:0,03 mm/K
Power consumption:< 10 mA
Signal voltage LOW:0 V +- 1 V
Silicon free:-
Medium:Fluids
Inductive load:≤ 1 H
Ambient storage temperature:-40 °C ... +80 °C
Housing material:Stainless steel 1.4404, PEI
Accuracy of sensor element:± 2 mm
Ambient operating temperature:-40 °C ... +70 °C
Viscosity:0.1 mPas ... 10,000 mPas
Initialization time:< 2 s
Process temperature:-40 °C ... +150 °C
Resolution:≤ 1 mm
Connection type:Round connector M12 x 1, 4-pin
Enclosure rating:IP 67
Fill material density:≥ 0.7 g/cm
Repeatability:≤ 1 mm
Probe length:38 mm
Supply voltage:10 V DC ... 55 V DC
Output current:< 250 mA
Process connection:Triclamp 2'' (PN 16, 316L, Ra<0.8µm)
Wetted parts:316L (optional Ra < 0.8 µm)
Signal voltage HIGH:Vs - < 3 V
Ripple:≤ 5 Vpp
VDE protection class 2:+
Hysteresis:2 mm
Process pressure:-1 bar ... 64 bar
EHEDG approval:+
Capacitive load:100 nF
Response time:500 ms
