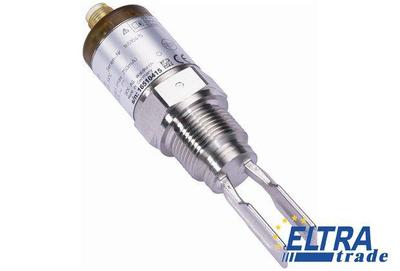

Sick LFV200-XXSGACPV Level sensors

Sick LFV200-XXSGACPV
Item Number: LFV200-XXSGACPV
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
241.69
Quantity
-
+
Total price: 241.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6036369
Output current:< 250 mA
Process temperature:-40 °C ... +100 °C
Wetted parts:316L (optional Ra < 0.8 µm)
Ambient operating temperature:-40 °C ... +70 °C
Housing material:Stainless steel 1.4404, PEI
Probe length:38 mm
Fill material density:≥ 0.7 g/cm
Temperature drift:0,03 mm/K
Process connection:G 1 A PN 64
Hysteresis:2 mm
Connection type:Valve plug DIN 43650
Ambient storage temperature:-40 °C ... +80 °C
VDE protection class 1:+
Accuracy of sensor element:± 2 mm
Silicon free:-
Medium:Fluids
Supply voltage:20 V AC/DC ... 253 V AC/DC
Response time:500 ms
Capacitive load:100 nF
Enclosure rating:IP 65
Process pressure:-1 bar ... 64 bar
Inductive load:≤ 1 H
Measurement:Switch
Repeatability:≤ 1 mm
Initialization time:< 3 s
Viscosity:0.1 mPas ... 10,000 mPas
Power consumption:≤ 4.2 mA
Resolution:≤ 1 mm
