Sick LFV200-XXSGACPVL Level sensors

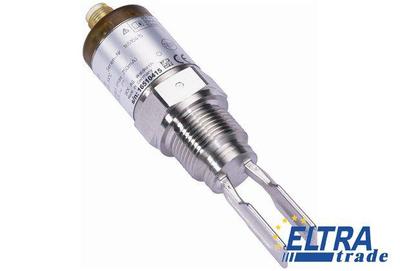

Sick LFV200-XXSGACPVL
Item Number: LFV200-XXSGACPVL
  • Housing made of 316L stainless steel
  • Two electrical output versions available
  • Commissioning without filling
274.60
Quantity
-
+
Total price: 274.60
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6037305
Process temperature:-40 °C ... +100 °C
Repeatability:≤ 1 mm
Accuracy of sensor element:± 2 mm
Process pressure:-1 bar ... 64 bar
Response time:500 ms
Resolution:≤ 1 mm
Temperature drift:0,03 mm/K
Measurement:Switch
Inductive load:≤ 1 H
Supply voltage:20 V AC/DC ... 253 V AC/DC
Silicon free:-
Probe length:115 mm
Wetted parts:316L (optional Ra < 0.8 µm)
Process connection:G 1 A PN 64
Ambient storage temperature:-40 °C ... +80 °C
VDE protection class 1:+
Connection type:Valve plug DIN 43650
Initialization time:< 3 s
Medium:Fluids
Enclosure rating:IP 65
Power consumption:≤ 4.2 mA
Ambient operating temperature:-40 °C ... +70 °C
Hysteresis:2 mm
Housing material:Stainless steel 1.4404, PEI
Viscosity:0.1 mPas ... 10,000 mPas
Capacitive load:100 nF
Fill material density:≥ 0.7 g/cm
Output current:< 250 mA
