Sick LUT3-951 Luminescence sensors

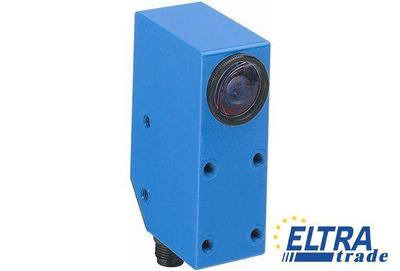

Sick LUT3-951
Item Number: LUT3-951
  • Tough metal housing
  • Sensing distance: 10, 20 or 50 mm
  • Sensing distances selectable through interchangeable lenses
1600.69
Quantity
-
+
Total price: 1600.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1019288
Protection class :II
Output current Imax.:100 mA
Switching mode:PNP/NPN
Response time :350 µs
Output function:Light switching
Type of light:Ultraviolet light
Enclosure rating:IP 67
Shock load:According to IEC 60068
Light source :LED
Fieldbus interface:-
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Receiving filters:OG 570
Wave length:375 nm
Ambient storage temperature:-25 °C ... +75 °C
Ripple :< 2 Vpp
Housing design (light emission):Rectangular
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Connection type:Connector M12, 5-pin
Adjustment:Manual (potentiometer)
Weight:400 g
Sensing distance :50 mm
Housing material:Metal, Zinc diecast
Light spot size:5 mm x 15 mm
Switching frequency :1.5 kHz
Supply voltage:12 V DC ... 30 V DC
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
PNP: HIGH = VS- ≤ 3 V / LOW = approx. 0 V
Power consumption :< 60 mA
Receiving range:570 nm ... 750 nm
Ambient operating temperature:-10 °C ... +55 °C
