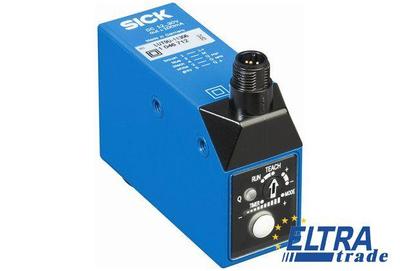

Sick LUT9U-11316 Luminescence sensors

Sick LUT9U-11316
Item Number: LUT9U-11316
  • Simple teach-in
  • Operating range up to 250 mm
  • Version with IO-Link for remote monitoring
982.50
Quantity
-
+
Total price: 982.50
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1047052
Switching frequency :0.5 kHz, 2.5 kHz, 6.5 kHz, Adjustable
Receiving range:570 nm ... 750 nm
Housing design (light emission):Rectangular
Output function :Light switching
Light source :LED
Ambient storage temperature:-25 °C ... +75 °C
Analog output QA:0 mA ... 13 mA
Output current Imax.:100 mA
Fieldbus interface:-
Protection class :II
Light spot direction:Vertical
Light emission:Long side
Ripple :< 5 Vpp
Enclosure rating:IP 67
Response time :1 ms
200 µs
75 µs
Supply voltage:10 V DC ... 30 V DC
Weight:400 g
Light spot size:5 mm x 15 mm
Switching mode:PNP/NPN
Dimensions (W x H x D):30.4 mm x 53 mm x 80 mm
Power consumption :< 100 mA
Time delay:0 ms / 10 ms / 20 ms, Adjustable
Ambient operating temperature:-10 °C ... +55 °C
Connection type:Male connector M12, 5-pin
Sensing distance :50 mm
Shock load:According to IEC 60068
Operating range:20 mm 70 mm
Type of light:Ultraviolet light
Receiving filters:OG 570
Housing material:Metal, Zinc diecast
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Wave length:375 nm
Adjustment:Static 2-point teach-in with manual fine adjustment
