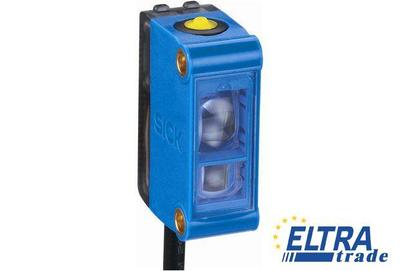

Sick LUTM-UN81162P LUTM Luminescence sensor

Sick LUTM-UN81162P
Item Number: LUTM-UN81162P
  • Luminescence sensor in a miniature housing
  • Static and dynamic teach-in methods in a single variant
  • Reliable detection even at a low level luminescence
276.53
Quantity
-
+
Total price: 276.53
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1067296
Ripple :≤ 5 Vpp
Output current Imax.:< 100 mA
Light source :LED
Supply voltage:12 V DC ... 24 V DC
Light spot direction:Vertical
Light emission:Long side
Protection class:III
Receiving range:450 nm ... 750 nm
Light spot size :2 mm x 2.5 mm
UL File No.:NRKH.E181493 & NRKH7.E181493
Switching mode:NPN
Output function :Light/dark switching
Wave length:370 nm
Switching output:NPN: HIGH = approx. VS / LOW ≤ 2 V
Operating range:8 mm 20 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Dimensions (W x H x D):31.5 mm x 21 mm x 12 mm
Enclosure rating:IP 67
Type of light:Ultraviolet light
Input, teach-in (ET):NPN:, Run: U = 10 V ... < UV, Teach: U < 2 V
Weight:70 g
Ambient operating temperature:-10 °C ... +55 °C
Shock load:According to IEC 60068
Adjustment:2-point teach-in static/dynamic
Power consumption :≤ 50 mA
Switching frequency :6 kHz, Depending on the mark intensity
Sensing distance :12.5 mm
Housing material:ABS, Plastic
Ambient storage temperature:-20 °C ... +75 °C
Fieldbus interface:-
Jitter:40 µs
Response time :80 µs
Housing design (light emission):Rectangular
Connection type:Connector M12, 4-pin
