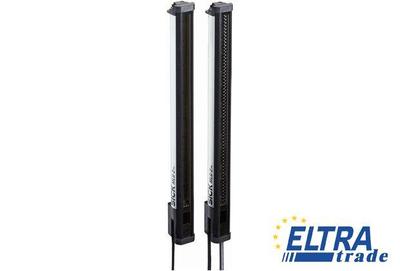

Sick MLG05A-0145I10501

Measuring automation light grids
Sick MLG05A-0145I10501
Price on Request
One click request

Specification:

Part Number1213791
Ripple:< 5 Vpp
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
Initialization time:< 1 s
IO-Link:+
Minimum detectable object (MDO) :5 mm
9 mm
Technology:Sender/receiver
Weight:0.547 kg
Response time :3.6 ms
Output current Imax.:100 mA
Number of beams:30
Minimum range:≥0 mm
Power consumption sender :56.5 mA
Wave length:850 nm
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Working range:5 m
Dimensions (W x H x D):34 mm x 223.3 mm x 30.6 mm
Maximum range :7 m
Power consumption receiver :126 mA
Option:Nonexistent
Output load inductive:1 H
Indication:LED
Front screen:PMMA
Output load capacitive:100 nF
Protection class:III
Beam separation:5 mm
Data interface:RS-485 + 2 x I/O (IO-Link)
EMC:EN 60947-5-2
Version:Pro
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Supply voltage Vs :DC 18 V ... 30 V
Housing material:Aluminum
Enclosure rating:IP 65, IP 67
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Detection height:145 mm
Connection type:Male connector M12, 8-pin
