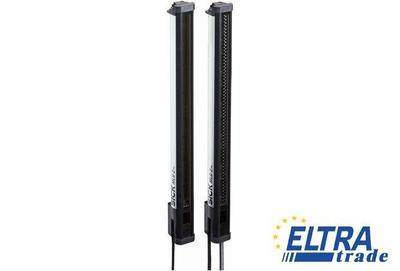

Sick MLG05A-0595I10501 Measuring automation light grids

Sick MLG05A-0595I10501
Item Number: MLG05A-0595I10501
  • High-resolution light grid: Available with beam separation of 2.5 mm (coming soon), 5 mm, 10 mm, 25 mm, and 50 mm
  • "High-speed scan" function with triple scanning speed
  • "Transparent mode" function for detecting transparent materials
3061.59
Quantity
-
+
Total price: 3061.59
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick MLG05A-0595I10501 is outdated.

Specification:

Part Number1213799
Weight:1.447 kg
Indication:LED
Option:Nonexistent
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Version:Pro
Output load inductive:1 H
Wave length:850 nm
Working range:5 m
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
IO-Link:+
Number of beams:120
EMC:EN 60947-5-2
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Data interface:RS-485 + 2 x I/O (IO-Link)
Maximum range :7 m
Minimum detectable object (MDO) :5 mm
9 mm
Technology:Sender/receiver
Beam separation:5 mm
Initialization time:< 1 s
Detection height:595 mm
Supply voltage Vs :DC 18 V ... 30 V
Dimensions (W x H x D):34 mm x 673.3 mm x 30.6 mm
Power consumption receiver :144 mA
Front screen:PMMA
Connection type:Male connector M12, 8-pin
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Ripple:< 5 Vpp
Protection class:III
Housing material:Aluminum
Output current Imax.:100 mA
Output load capacitive:100 nF
Enclosure rating:IP 65, IP 67
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Minimum range:≥0 mm
Power consumption sender :61 mA
Response time :10.6 ms
