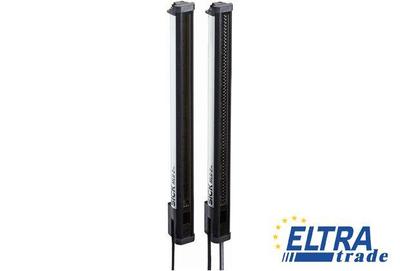

Sick MLG05A-2395I10501

Measuring automation light grids
Sick MLG05A-2395I10501
Price on Request
One click request

Specification:

Part Number1213502
Working range:5 m
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Data interface:RS-485 + 2 x I/O (IO-Link)
Front screen:PMMA
Protection class:III
Enclosure rating:IP 65, IP 67
Housing material:Aluminum
Ripple:< 5 Vpp
Indication:LED
Supply voltage Vs :DC 18 V ... 30 V
Technology:Sender/receiver
Minimum range:≥0 mm
IO-Link:+
Wave length:850 nm
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Initialization time:< 1 s
Dimensions (W x H x D):34 mm x 2,473.3 mm x 30.6 mm
Maximum range :7 m
Option:Nonexistent
Output load inductive:1 H
Number of beams:480
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Output load capacitive:100 nF
Response time :38.3 ms
Output current Imax.:100 mA
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Beam separation:5 mm
Detection height:2,395 mm
EMC:EN 60947-5-2
Weight:5.047 kg
Version:Pro
Minimum detectable object (MDO) :5 mm
9 mm
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
Connection type:Male connector M12, 8-pin
Power consumption receiver :216 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Power consumption sender :79 mA
