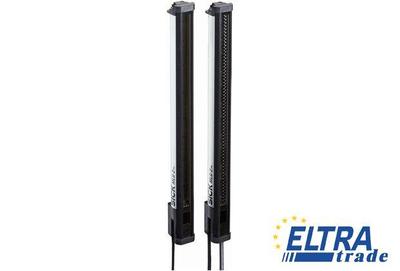

Sick MLG10A-1340I10501

Measuring automation light grids
Sick MLG10A-1340I10501
Price on Request
One click request

Specification:

Part Number1213819
Supply voltage Vs :DC 18 V ... 30 V
Option:Nonexistent
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Output current Imax.:100 mA
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
Minimum detectable object (MDO) :10 mm
14 mm
Beam separation:10 mm
Protection class:III
Power consumption receiver :147 mA
Housing material:Aluminum
Connection type:Male connector M12, 8-pin
Response time :11.7 ms
Weight:2.947 kg
Working range:5 m
IO-Link:+
Maximum range :7 m
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Enclosure rating:IP 65, IP 67
Technology:Sender/receiver
Output load capacitive:100 nF
Power consumption sender :61.75 mA
Ripple:< 5 Vpp
EMC:EN 60947-5-2
Data interface:RS-485 + 2 x I/O (IO-Link)
Version:Pro
Number of beams:135
Front screen:PMMA
Initialization time:< 1 s
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Indication:LED
Wave length:850 nm
Output load inductive:1 H
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Dimensions (W x H x D):34 mm x 1,423.3 mm x 30.6 mm
Detection height:1,340 mm
Minimum range:≥0 mm
