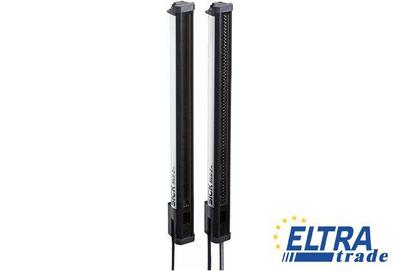

Sick MLG25A-1925I10501 Measuring automation light grids

Sick MLG25A-1925I10501
Item Number: MLG25A-1925I10501
  • High-resolution light grid: Available with beam separation of 2.5 mm (coming soon), 5 mm, 10 mm, 25 mm, and 50 mm
  • "High-speed scan" function with triple scanning speed
  • "Transparent mode" function for detecting transparent materials
3366.96
Quantity
-
+
Total price: 3366.96
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1213827
Indication:LED
Beam separation:25 mm
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Maximum range :7 m
Dimensions (W x H x D):34 mm x 2,023.3 mm x 30.6 mm
Minimum detectable object (MDO) :25 mm
29 mm
Ambient light safety:Direct: 12,500 ... 150,000 lx, Indirect: ≥50,000 lx
Ripple:< 5 Vpp
Power consumption receiver :135.6 mA
Power consumption sender :58.9 mA
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
IO-Link:+
Minimum range:≥0 mm
Data interface:RS-485 + 2 x I/O (IO-Link)
Wave length:850 nm
Output load capacitive:100 nF
Connection type:Male connector M12, 8-pin
Version:Pro
Supply voltage Vs :DC 18 V ... 30 V
Weight:4.147 kg
Option:Nonexistent
Output current Imax.:100 mA
Technology:Sender/receiver
Protection class:III
Working range:5 m
EMC:EN 60947-5-2
Number of beams:78
Enclosure rating:IP 65, IP 67
Output load inductive:1 H
Housing material:Aluminum
Initialization time:< 1 s
Software features:Baud rate RS-485: 9,600, Interface RS-485: beam status, Q1: presence detection, Teach-in, Standard mode
Response time :7.3 ms
Detection height:1,925 mm
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Front screen:PMMA
