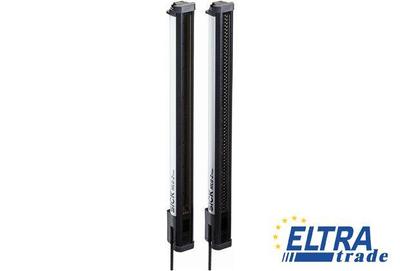

Sick MLG25S-0575A10501 Measuring automation light grids

Sick MLG25S-0575A10501
Item Number: MLG25S-0575A10501
  • High-resolution light grid: Available with beam separation of 5 mm, 10 mm, 25 mm, and 50 mm
  • Available with three push-pull switching outputs or two analog outputs
  • Display configuration with selected, pre-programmed measuring functions
Total price: 1270.18
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1213542
Shock load:15 g / DIN EN 60 068-2-27 / 16 ms
Front screen:PMMA
Connection type:Male connector M12, 5-pin
Beam separation:25 mm
Power consumption sender :56.2 mA
Output load inductive:1 H
Software features:Inverted: -, Q1: presence detection, Height measurement (first beam)/FBB, Height measurement (last beam)/LBB, Standard teach
Output current Imax.:100 mA
Protection class:III
Detection height:575 mm
Ambient temperature:Operation: -30 ... +55 °C, Storage: -40 ... +70 °C
Working range:5 m
Maximum range :7 m
Response time :6.1 ms
Data interface:2 x Analog + 1 x Q (IO-Link)
Housing material:Aluminum
Weight:1.447 kg
Vibration resistance:5 g, 10 Hz ... 55 Hz (EN 60 068-2-64)
Ripple:< 5 Vpp
Ambient light safety:Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Number of beams:24
Enclosure rating:IP 65, IP 67
EMC:EN 60947-5-2
Initialization time:< 1 s
Supply voltage Vs :DC 18 V ... 30 V
Minimum range:≥0 mm
Power consumption receiver :124.8 mA
Minimum detectable object (MDO) :29 mm
Wave length:850 nm
Output load capacitive:100 nF
Dimensions (W x H x D):34 mm x 673.3 mm x 30.6 mm
