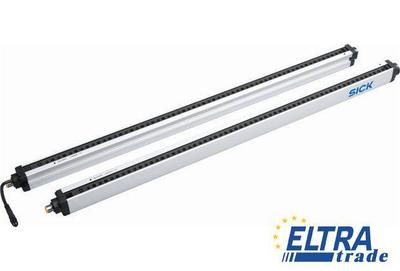

Sick MLG3-3120F822 Measuring automation light grids

Sick MLG3-3120F822
Item Number: MLG3-3120F822
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
  • Detection heights of over 3 m and up to 240 beams possible
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1025597
Protection class:III
Maximum range :12 m
Working range :8.5 m
Minimum detectable object (MDO) :Parallel beam: ≥40 mm
Minimum range:Parallel beam: ≥0 mm
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Switching output:3 x PNP
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Number of beams:105
Output current Imax.:100 mA
Power consumption:350 mA
Dimensions (W x H x D):34 mm x 3,214 mm x 29 mm
EMC:EN 60947-5-2
Power consumption receiver :415 mA
Ripple:< 5 Vpp
Wave length:IR 880 nm
Weight:7.676 kg
Detection height:3,120 mm
Initialization time:1 s
Response time :Parallel beam: ≥16.75 ms
Housing material:Aluminum
Inputs:1 x PNP
Enclosure rating:IP 65
Configuration:Parameterization interface (measuring)
Output load capacitive:100 nF
Supply voltage Vs :DC 18 V ... 30 V
Power consumption sender :350 mA
Beam separation:30 mm
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Indication:7-segment display, LED
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Front screen:PMMA
Shock load:10 g / IEC 68-2-29 / 16 ms
Task:Measurement light grid
Output load inductive:1 H
Connection type:Male connector M12, 8-pin
