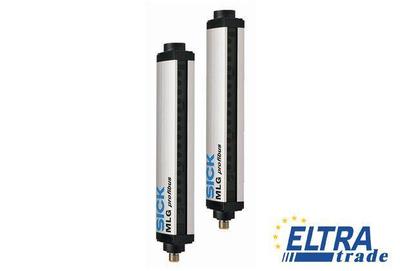

Sick MLG5-2050P811 Measuring automation light grids

Sick MLG5-2050P811
Item Number: MLG5-2050P811
  • Integrated PROFIBUS interface
  • Resolutions of 10 / 20 / 30 / 50 mm and customer-specific resolutions
  • Working range up to 8.5 m
Price on Request
Quantity
-
+
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1028739
Front screen:PMMA
Indication:7-segment display, LED
Supply voltage Vs :DC 18 V ... 30 V
Housing material:Aluminum
Minimum range:Parallel beam: ≥0 mm
Shock load:10 g / IEC 68-2-29 / 16 ms
Synchronization:Cable
Power consumption sender :224 mA
Working range :5 m
Output current Imax.:100 mA
Beam separation:50 mm
Wave length:IR 880 nm
Ambient light safety :Direct: ≥12,500 lx, Indirect: ≥50,000 lx
Ambient temperature:Operation: -25 ... +55 °C, Storage: -40 ... +70 °C
Response time :Parallel beam: ≥7.3 ms
Dimensions (W x H x D):34 mm x 2,164 mm x 29 mm
Number of beams:42
Ripple:< 5 Vpp
Output load capacitive:100 nF
Power consumption:224 mA
Weight:5.215 kg
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
EMC:EN 60947-5-2
Protection class:III
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Minimum detectable object (MDO) :Parallel beam: ≥55 mm
Detection height:2,050 mm
Maximum range :7 m
Switching output:1 x PNP
Connection type:Male connector M12, 8-pin
Enclosure rating:IP 65
Technology:Sender/receiver
Configuration:GSD data file
Initialization time:1 s
Power consumption receiver :226 mA
Output load inductive:1 H
Task:Measurement light grid
Inputs:1 x PNP
