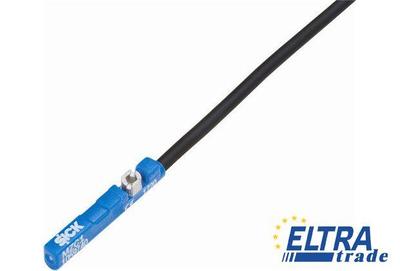

Sick MZC1-2V2PS-KU0 Magnetic Cylinder Sensors

Sick MZC1-2V2PS-KU0
Item Number: MZC1-2V2PS-KU0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
Total price: 32.75
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1059738
Ambient operating temperature:-30 °C ... 80 °C
Cable material:PUR
Output function:NO
Housing material:Plastic
Power-up pulse protection:-
Conductor cross-section:0.09 mm²
Power consumption:≤ 8 mA
Cylinder type:C-slot
Output current Ia:≤ 100 mA
Reverse polarity protection:+
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Repeatability:≤ 0.1 mT
Switching frequency typ.:1,000 Hz
Electrical wiring:DC 3-wire
Switching output:PNP
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
EMC:According to EN 60947-5-2
Overrun distance typ.:4 mm
Connection type:Cable, 3-wire, 2 m
Housing length:23.7 mm
Short-circuit protection:+
Voltage drop:≤ 2.5 V
Protection class:III
Supply voltage:10 V DC ... 30 V DC
Magnetic field sensitivity, typ.:2.2 mT
Hysteresis typ.:≤ 0.8 mT
