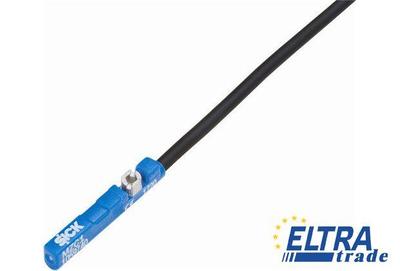

Sick MZC1-2V2PS-KWB Magnetic Cylinder Sensors

Item Number: MZC1-2V2PS-KWB
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
Total price: 40.87
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1059741
Housing length:23.7 mm
Protection class:III
Ambient operating temperature:-30 °C ... 80 °C
Switching frequency typ.:1,000 Hz
Power consumption:≤ 8 mA
Reverse polarity protection:+
Overrun distance typ.:4 mm
Conductor cross-section:0.09 mm²
Housing material:Plastic
Short-circuit protection:+
Connection type:Cable, 3-wire, 5 m
Cable material:PVC
Voltage drop:≤ 2.5 V
Output function:NO
Hysteresis typ.:≤ 0.8 mT
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cylinder type:C-slot
Power-up pulse protection:-
Output current Ia:≤ 100 mA
Supply voltage:10 V DC ... 30 V DC
Repeatability:≤ 0.1 mT
EMC:According to EN 60947-5-2
Switching output:PNP
Electrical wiring:DC 3-wire
Magnetic field sensitivity, typ.:2.2 mT
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
