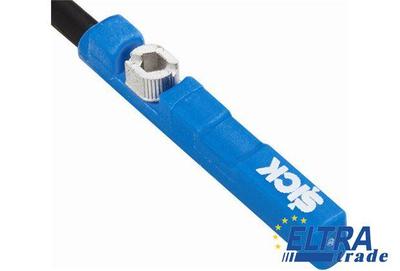

Sick MZC1-4V3NS-KP0 Magnetic Cylinder Sensors

Sick MZC1-4V3NS-KP0
Item Number: MZC1-4V3NS-KP0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
39.64
Quantity
-
+
Total price: 39.64
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1059757
Magnetic field sensitivity, typ.:4.25 mT
Output current Ia:≤ 100 mA
Repeatability:≤ 0.1 mT
Short-circuit protection:+
Switching output:NPN
Cylinder type:C-slot
Housing length:23.7 mm
Protection class:III
Power-up pulse protection:-
Power consumption:≤ 8 mA
Connection type:Cable with connector M8, 3-pin, 0.3 m
Conductor cross-section:0.09 mm²
Output function:NO
Electrical wiring:DC 3-wire
Supply voltage:10 V DC ... 30 V DC
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Switching frequency typ.:± 1,000 Hz
Cable material:PUR
Housing material:Plastic
EMC:According to EN 60947-5-2
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Voltage drop:≤ 2.5 V
Reverse polarity protection:+
Hysteresis typ.:≤ 0.8 mT
Overrun distance typ.:7 mm
Ambient operating temperature:-30 °C ... +80 °C
