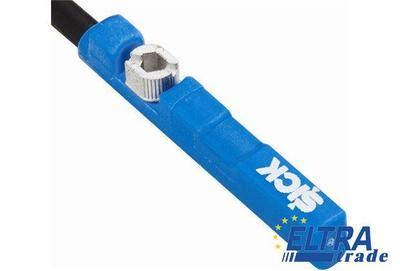

Sick MZC1-4V3PS-KQ0 Magnetic Cylinder Sensors

Sick MZC1-4V3PS-KQ0
Item Number: MZC1-4V3PS-KQ0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
41.34
Quantity
-
+
Total price: 41.34
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1059754
Switching output:PNP
Voltage drop:≤ 2.5 V
Hysteresis typ.:≤ 0.8 mT
Cable material:PUR
Power-up pulse protection:-
Housing length:23.7 mm
Overrun distance typ.:7 mm
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cylinder type:C-slot
Switching frequency typ.:1,000 Hz
Magnetic field sensitivity, typ.:4.25 mT
Protection class:III
Connection type:Cable with connector M12, 3-pin, 0.3 m
Conductor cross-section:0.09 mm²
EMC:According to EN 60947-5-2
Power consumption:≤ 8 mA
Supply voltage:10 V DC ... 30 V DC
Output function:NO
Repeatability:≤ 0.1 mT
Output current Ia:≤ 100 mA
Short-circuit protection:+
Electrical wiring:DC 3-wire
Ambient operating temperature:-30 °C ... +80 °C
Housing material:Plastic
Reverse polarity protection:+
