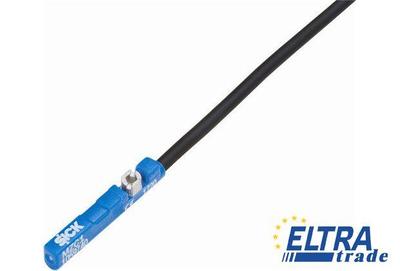

Sick MZC1-4V3PS-KU0 Magnetic Cylinder Sensors

Sick MZC1-4V3PS-KU0
Item Number: MZC1-4V3PS-KU0
  • Fits into all commonly used cylinders, linear slides and grippers with C-slots, such as, Festo or SMC
  • Complete range with PNP / NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
37.57
Quantity
-
+
Total price: 37.57
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1059755
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cable material:PUR
Power consumption:≤ 8 mA
Reverse polarity protection:+
Magnetic field sensitivity, typ.:4.25 mT
Cylinder type:C-slot
Short-circuit protection:+
Switching frequency typ.:1,000 Hz
Supply voltage:10 V DC ... 30 V DC
Conductor cross-section:0.09 mm²
Repeatability:≤ 0.1 mT
Power-up pulse protection:-
Hysteresis typ.:≤ 0.8 mT
Cylinder types with adapter:SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Protection class:III
Switching output:PNP
Connection type:Cable, 3-wire, 2 m
Ambient operating temperature:-30 °C ... 80 °C
Electrical wiring:DC 3-wire
Voltage drop:≤ 2.5 V
Output function:NO
EMC:According to EN 60947-5-2
Output current Ia:≤ 100 mA
Housing length:23.7 mm
Housing material:Plastic
Overrun distance typ.:7 mm
