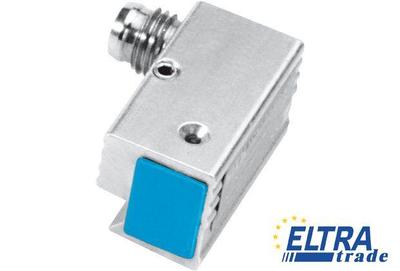

Sick MZK1-02VPS-AT0 Magnetic Cylinder Sensors

Sick MZK1-02VPS-AT0
Item Number: MZK1-02VPS-AT0
  • Simple mounting onto dove-tail cylinders
  • IP 67 enclosure rating
  • Industrial aluminum housing
84.10
Quantity
-
+
Total price: 84.10
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number7900604
Power consumption:≤ 10 mA
Magnetic field sensitivity, min.:2 mT
Housing length:26 mm
Voltage drop:≤ 1.5 V
Sensing face material:Plastic
Short-circuit protection:+
Sensing face:Front
Cylinder type:Dove-tail groove cylinder
Electrical wiring:DC 3-wire
Supply voltage:10 V DC ... 30 V DC
Repeatability:≤ 0.1 mm
Thread size:M8
Connection type:Connector M8, 3-pin
Switching output:PNP
Reverse polarity protection:+
Enclosure rating:IP 67
Ambient operating temperature:-25 °C ... 75 °C
Housing material:Metal, Aluminum
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Output function:NO
Switching frequency typ.:5,000 Hz
Time delay before availability:≤ 2 ms
Power-up pulse protection:+
EMC:According to EN 60947-5-2
Output current Ia:≤ 300 mA
