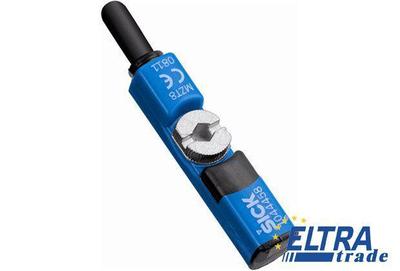

Sick MZT8-03VPS-KUA Magnetic Cylinder Sensors

Sick MZT8-03VPS-KUA
Item Number: MZT8-03VPS-KUA
  • Fits into all commonly used cylinders, linear slides and grippers with T-slots and it can be also applied to multiple cylinders types such as round, tie-rod, integrated profile or dove-tail cylinders with mounting brackets
  • Complete range with PNP/ NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
43.98
Quantity
-
+
Total price: 43.98
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1044466
Power consumption:≤ 10 mA
Cable material:PUR
Ambient operating temperature:-30 °C ... +80 °C
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Supply voltage:10 V DC ... 30 V DC
Cylinder type:T-slot
Power-up pulse protection:+
Connection type:Cable, 3-wire, 3 m
Switching frequency typ.:1,000 Hz
Housing length:24 mm
Output current Ia:≤ 200 mA
Short-circuit protection:+
Enclosure rating:IP 68, IP 69K
Hysteresis typ.:> 0.5 mT
Overrun distance typ.:3 mm
Conductor cross-section:14 mm²
Electrical wiring:DC 3-wire
EMC:According to EN 60947-5-2
Reverse polarity protection:+
Output function:NO
Switching output:PNP
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Voltage drop:≤ 2.2 V
Protection class:III
Repeatability:≤ 0.1 mT
Housing material:Plastic
Housing cap material:PA12
Magnetic field sensitivity, typ.:2.6 mT
