Sick MZT8-03VPS-KWB Magnetic Cylinder Sensors

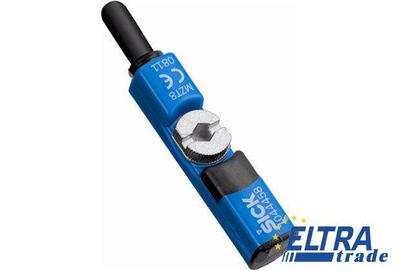

Sick MZT8-03VPS-KWB
Item Number: MZT8-03VPS-KWB
  • Fits into all commonly used cylinders, linear slides and grippers with T-slots and it can be also applied to multiple cylinders types such as round, tie-rod, integrated profile or dove-tail cylinders with mounting brackets
  • Complete range with PNP/ NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
44.55
Quantity
-
+
Total price: 44.55
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1048314
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Short-circuit protection:+
Protection class:III
Magnetic field sensitivity, typ.:2.6 mT
Power consumption:≤ 10 mA
Supply voltage:10 V DC ... 30 V DC
Housing cap material:PA12
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
EMC:According to EN 60947-5-2
Connection type:Cable, 3-wire, 5 m
Electrical wiring:DC 3-wire
Housing material:Plastic
Enclosure rating:IP 67, IP 69K
Conductor cross-section:12 mm²
Cable material:PVC
Ambient operating temperature:-30 °C ... +80 °C
Reverse polarity protection:+
Housing length:24 mm
Output function:NO
Power-up pulse protection:+
Overrun distance typ.:3 mm
Hysteresis typ.:> 0.5 mT
Output current Ia:≤ 200 mA
Voltage drop:≤ 2.2 V
Repeatability:≤ 0.1 mT
Switching output:PNP
Cylinder type:T-slot
Switching frequency typ.:1,000 Hz
