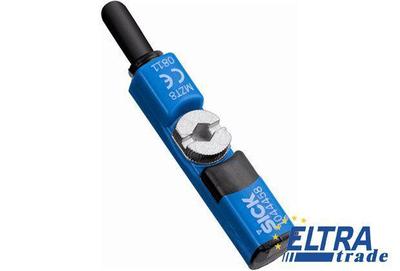

Sick MZT8-28VPS-KQ0 Magnetic Cylinder Sensors

Sick MZT8-28VPS-KQ0
Item Number: MZT8-28VPS-KQ0
  • Fits into all commonly used cylinders, linear slides and grippers with T-slots and it can be also applied to multiple cylinders types such as round, tie-rod, integrated profile or dove-tail cylinders with mounting brackets
  • Complete range with PNP/ NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
46.16
Quantity
-
+
Total price: 46.16
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1048051
Output current Ia:≤ 200 mA
Connection type:Cable with connector M12, 3-pin, 0.3 m
Power consumption:≤ 10 mA
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Conductor cross-section:14 mm²
Voltage drop:≤ 2.2 V
Protection class:III
Switching output:PNP
Electrical wiring:DC 3-wire
Enclosure rating:IP 68
Supply voltage:10 V DC ... 30 V DC
Repeatability:≤ 0.1 mT
Power-up pulse protection:+
Magnetic field sensitivity, typ.:2.8 mT
Thread size:M12
Cylinder type:T-slot
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Cable material:PUR
Ambient operating temperature:-30 °C ... +80 °C
Switching frequency typ.:1,000 Hz
Overrun distance typ.:9 mm
Output function:NO
Housing material:Plastic
Short-circuit protection:+
Housing length:24 mm
Reverse polarity protection:+
Hysteresis typ.:> 0.5 mT
Housing cap material:PA12
EMC:According to EN 60947-5-2
