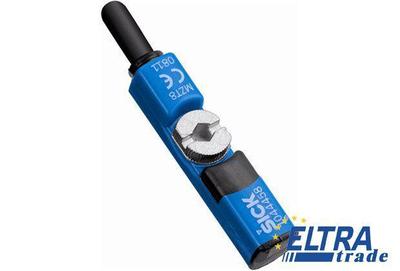

Sick MZT8-28VPS-KWB Magnetic Cylinder Sensors

Item Number: MZT8-28VPS-KWB
  • Fits into all commonly used cylinders, linear slides and grippers with T-slots and it can be also applied to multiple cylinders types such as round, tie-rod, integrated profile or dove-tail cylinders with mounting brackets
  • Complete range with PNP/ NPN, PUR and PVC cable , M8 and M12 connector
  • Combined Allen and flathead installation screw
Total price: 44.55
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1057030
Housing cap material:PA12
Cylinder type:T-slot
Repeatability:≤ 0.1 mT
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Voltage drop:≤ 2.2 V
Ambient operating temperature:-30 °C ... +80 °C
Protection class:III
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Hysteresis typ.:> 0.5 mT
Short-circuit protection:+
Overrun distance typ.:9 mm
Electrical wiring:DC 3-wire
Supply voltage:10 V DC ... 30 V DC
Power consumption:≤ 10 mA
Enclosure rating:IP 67, IP 69K
EMC:According to EN 60947-5-2
Switching frequency typ.:1,000 Hz
Conductor cross-section:12 mm²
Power-up pulse protection:+
Output function:NO
Magnetic field sensitivity, typ.:2.8 mT
Housing material:Plastic
Connection type:Cable, 3-wire, 5 m
Housing length:24 mm
Output current Ia:≤ 200 mA
Switching output:PNP
Reverse polarity protection:+
Cable material:PVC
