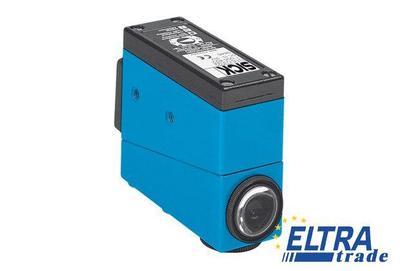

Sick NT6-07022 Contrast sensors

Sick NT6-07022
Item Number: NT6-07022
  • RGB, white LEDs and red lasers
  • Bar graph display visually indicates contrast performance (KT5, KT10)
  • High switching frequency
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1005826
Switching frequency :10 kHz
Housing material:Die-cast zinc
Connection type:2 m cable , 4 x 0.34 mm, shielded, PVC, diameter 6 mm
Weight:Approx. 540 g (with cable)
Output current Imax.:200 mA
Response time :> 50 µs
Light source :LED red, green
Light spot size:1.5 mm x 4 mm (red), 1.5 mm x 5 mm (green)
Ambient temperature:Operation: 0 ... +50 °C, Storage: -25 ... +75 °C
Enclosure rating:IP 67
Circuit protection:Output Q short-circuit protected, Interference suppression, VS connections reverse-polarity protected
Analog output QA:0.15 V ... 6 V
Dimensions (L x W x H):64 mm x 80 mm x 30.4 mm
Function:Deactivation delay, 50 ms
Power consumption :< 80 mA
Switching output:PNP: HIGH = VS- ≤ 2 V / LOW approx. 0 V
Sensing distance tolerance:± 2 mm
Light emission:Long and short side of housing, exchangeable
Shock load:According to IEC 60068
Sensing distance:9 mm
Ripple:≤ 5 Vpp
Light spot direction :Vertical
Adjustment:Manual adjustment, potentiometer
Supply voltage Vs:DC 10 V ... 30 V
