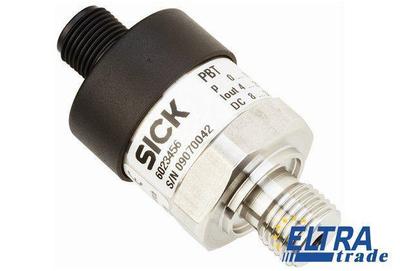

Sick PBT-RB6X0SGTSSNALA0Z Pressure sensor PBT
Item Number: PBT-RB6X0SGTSSNALA0Z
- Gauge pressure measurement ranges from 0 ... 1 bar up to 0 … 600 bar
- A large variety of available process connections
- No moving parts: No mechanical wear, fatigue-proof, maintenance-free
- Overview
- Datasheet
- Alternative numbers
- Comments
Specification:
| Part Number | 6044018 |
| Protection class III: | + |
| Seal: | NBR |
| Wetted parts: | Pressure connection: stainless steel 316L, Pressure sensor: stainless steel 316L (for measurement ranges from 0 bar ... 10 bar rel stainless steel 13-8 PH) |
| Enclosure rating: | IP 65 |
| Process connection: | G ½ A according to DIN 3852-E |
| Non-linearity: | ≤ ± 0.5 % ((Best Fit Straight Line, BFSL) according to IEC 61298-2) |
| Hysteresis: | ≤ 0.16 % of span |
| Accuracy: | ≤ ± 0,6 % of Span (with non-linearity 0.25 % and with signal output 0 ... 5 V), ≤ ± 1 % of span (with non-linearity 0.25 %), ≤ ± 1,0 % of Span (with non-linearity 0.5 %), (Including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement according to IEC 61298-2)) |
| Vibration load: | 10 g according to IEC 60068-2-6 (vibration under resonance), 20 g optional |
| Signal noise: | ≤ 0.3 % of span |
| Service life: | Minimum 100 Mio. life cycles |
| Compound pressure: | -1 bar ... 0 bar up to -1 bar ... +24 bar |
| Ambient temperature: | 0 °C ... +80 °C |
| Power consumption: | Max. 8 mA for voltage output signal, Signal current (max. 25 mA) for current output |
| Measuring range: | 0 bar ... 6 bar |
| Output signal: | 4 mA ... 20 mA |
| Housing material: | Stainless steel 316L |
| Reference conditions: | Reference conditions: According to IEC 61298-1 |
| Rated temperature range: | 0 °C ... +80 °C |
| Connection type: | L-connector acc. to DIN 175301-803 A, IP 65 |
| Pressure port: | Standard |
| Adjustment accuracy of zero signal: | ≤ 0.5 % of span typ., ≤ 0.8 % of span max. (with non-linerarity 0.5 %) |
| Electrical safety: | Short-circuit protection: QA towards M, Protection class: III, Overvoltage protection: 32 V DC, 36 V DC with 4 mA ... 20 mA, Reverse polarity protection: L+ towards M |
| CE-conformity: | Pressure equipment directive: 97/23/EC, EMC directive: 2004/108/EC, EN 61 326-2-3 |
| Gauge pressure: | 0 bar ... 1 bar up to bar ... 600 bar |
| Long-term drift/one-year stability: | ≤ 0.1 % of span according to IEC 61298-2 |
| Non-repeatability: | ≤ 0.1 % of span |
| Storage temperature: | -20 °C ... +80 °C |
| Process temperature: | 0 °C ... +80 °C |
| Weight sensor: | Ca. 80 g |
| Absolute pressure: | 0 bar ... 1 bar up to 0 bar ... 25 bar |
| Medium: | Liquid and gaseous media |
| Shock load: | 500 g according to IEC 60068-2-27 (mechanical shock) |
| Pressure type: | Gauge pressure |
| Isolation voltage: | 500 V DC |
| Response time: | < 4 ms |
| Relative humidity: | 45 % ... 75 % |
| Internal transmission fluid: | Silicone oil (only with pressure ranges < 0 bar ... 10 bar and ≤ 0 bar abs ... 25 bar abs) |
