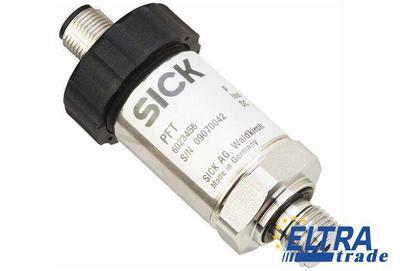

Sick PFT-SCB6X0SG1SEAAMSSZ

Pressure sensor PFT
Sick PFT-SCB6X0SG1SEAAMSSZ
406.47
One click request

Specification:

Part Number6041624
Electrical safety:Short-circuit protection: QA towards M, Protection class: III, Overvoltage protection: 36 V DC, Reverse polarity protection: L+ towards M
Process temperature:-40 °C ... 125 °C
Non-repeatability:<= +/- 0.1 % of span
Pressure type:Compound pressure
Output signal:4...20 mA
Weight sensor:200 g
CE-conformity:Pressure equipment directive: 97/23/EC, EMC directive: 2004/108/EC, EN 61 326-2-3
Measuring range:-1 bar ... 5 bar
Long-term drift/one-year stability:<= +/- 0.2 % of span (at reference conditions)
Housing material:Stainless steel
Enclosure rating:IP 67
Temperature coefficient in rated temperature range:Mean TC of span ≤ 0.2 % of span / 10 K, Mean TC of zero: ≤ 0.2 % of span / 10 K (< 0.4 % for pressure ranges ≤ 0.25 bar)
Supply voltage:10 V DC ... 30 V DC
Storage temperature:-40 °C ... 100 °C
Response time (10 % ... 90 %):≤ 1 ms (≤ 10 ms at medium temperatures below < -30°C for pressure ranges up to 25 bar or with flush-mounted membrane)
Dielectric strength:500 V DC, NEC Class 02 power supply (low voltage and low current max. 100 VA even under fault conditions)
CE-conformity:+
Ambient temperature:-20 °C ... 80 °C
Pressure port:Standard
Accuracy:<= +/- 0.5 % (of span)
Non-linearity:<= +/- 0.2 % (of span (Best Fit Straight Line, BFSL) according to IEC 61298-2)
Rated temperature range:0 °C ... 80 °C
Wetted parts:Standard: Stainless steel
Connection type:M12 x 1, 4-pin, IP 67
Vibration load:20 g according to IEC 60068-2-6 (vibration under resonance)
Seal:Without seal
Process connection:G 1/4 A according to DIN 3852-E
Protection class III:+
Shock load:1000 g according to IEC 60068-2-27 (mechanical shock)
