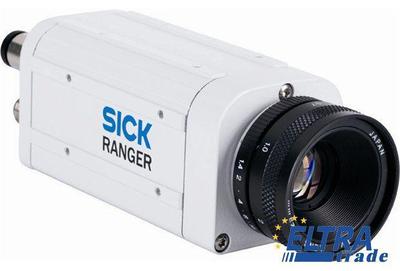

Sick Ranger-E40414 Ranger 3D machine vision

Sick Ranger-E40414
Item Number: Ranger-E40414
  • 3D shape inspection at up to 35,000 profiles/s
  • In-machine 3D calibration tool
  • MultiScan technology to measure 3D, contrast, and scatter at the same time
8126.33
Quantity
-
+
Total price: 8126.33
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1040378
Power consumption:7 W
Pixel size:9.5 µm x 9.5 µm
Ripple:< 5 Vpp
Digital inputs:4 x HIGH = 10 V ... 28.8 V
Data synchronization:Encoder triggered
External trigger
Free running
Shock load:15 g, 3 x 6 directions
Spectral range:400 nm ... 950 nm
Enclosure rating:IP 20
Factory calibrated:-
Programming interface:iCon API
Task:Inspection, Measuring, Positioning
Sensor rows available for 3D:0 ... 511
Connection types:M12, 8-pin female connector (encoder)
RJ45 (Ethernet)
Power I/O: M12, 8-pin male
Maximum performance:35,000 3D profiles/s
Scatter resolution:512 px
Pixel matrix fill factor:60 %
Supply voltage:12 V DC ... 24 V DC
Operating system:Windows 7, Windows XP Pro
Gray line resolution:512 px
Example field of view (H x W):Free of choice by lens selection
Dimensions (L x W x H):125 mm x 52 mm x 52 mm
Bit depth:8 bit
Optical center (row, column):(227, 256)
Image sensor:CMOS
Ambient operating temperature:0 °C ... +45 °C
Optics:C-Mount, 1/2"
Weight:360 g
Grayscale measurements:+
Maximum 3D height resolution:13 bits 1/16 pixel
Scatter measurement:+
Housing color:Gray, varnished
Communication interfaces:RS-422
IR filter:No IR pass filter
Sensor resolution:512 px x 512 px
Ambient storage temperature:-20 °C ... +70 °C
Vibration load:5 g, 58 Hz ... 150 Hz
Technology:3D
LineScan
MultiScan
Housing material:Aluminum
Standards (ROHS):+
Digital outputs:1 x TTL level, 2 x B-type, < 100 mA in total
Description:Ranger E40 - 3D and MultiScan, up to 35 k profiles / second. Gigabit Ethernet interface, 512 x 512 pixels.
Control of external illumination:5 V TTL
Power consumption:0.8 A
Encoder interface:RS-422
Configuration software:Ranger Studio
Connector material:M12: nickel-plated brass
Development environment:C, C++ (VS 2005/2008/2010)
Maximum encoder frequency:2 MHz
3D profile resolution:512 px
