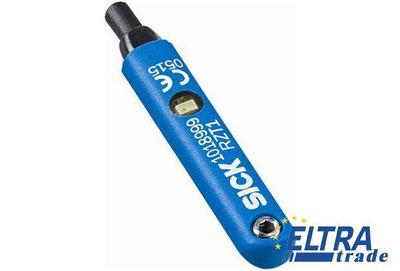

Sick RZT1-03ZRS-KWA Magnetic Cylinder Sensors

Item Number: RZT1-03ZRS-KWA
  • Compact housing design
  • Complete range with Reed 3-wire, Reed 2-wire, and Reed 230 V version
  • LED function indicator
Price on Request
Total price: 0.00
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick RZT1-03ZRS-KWA is outdated.


Part Number1028079
Connection type:Cable, 3-wire, 3 m
Output indicator:+
Cylinder types with adapter:Profile cylinder
Roundbody cylinder
SMC rail cylinder CDQ2
SMC rail cylinder ECDQ2
Tie rod cylinder
Cylinders with dovetail slots
Magnetic field sensitivity, typ.:3 mT
Electrical wiring:AC/DC 3-wire
Enclosure rating:IP 67
Output function:NO
Repeatability:≤ 0.2 mm
Supply voltage:10 V AC/DC ... 30 V AC/DC
Protection class:III
Output current Ia:≤ 500 mA
Hysteresis typ.:≤ 1.5 mm
Switching frequency typ.:400 Hz
EMC:According to EN 60947-5-2
Housing material:Plastic
Housing length:30.5 mm
Ambient operating temperature:-25 °C ... +75 °C
Switching output:Reed
Voltage drop:≤ 0.1 V
Switching power:6 W
Overrun distance typ.:9 mm
Cable material:PVC
Conductor cross-section:0.14 mm²
Shock/vibration:30 g, 11 ms / 10 ... 55 Hz, 1 mm
Short-circuit protection:-
Cylinder type:T-slot
