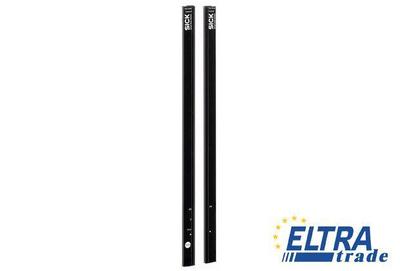

Sick SAS4-F028P3PS1W00 Switching automation light grids

Sick SAS4-F028P3PS1W00
Item Number: SAS4-F028P3PS1W00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
320.58
Quantity
-
+
Total price: 320.58
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1211906
Aluminum stabilizer:Without stabilizer
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Response time:Parallel beam 19 ms
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Connection type:Short cable with connector M8, 4-pin
Minimum detectable object (MDO):Parallel beam, 45 mm
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Power consumption receiver :70 mA
Housing material:PMMA
EMC:EN 60947-5-2
Synchronization:Optical
Technology:Sender/receiver
Power consumption sender :88 mA
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Output 1:Output 1 active, if light beam interrupted
Initialization time:1 s
Output current Imax.:100 mA
Output load capacitive:100 nF
Indication:LED
Cross beam/parallel beam:Parallel beam active
Muting function:Muting function inactive
Maximum range:4 m
Detection height:280 mm
Automatic teach:Automatic teach inactive
Minimum range:Parallel beam: ≥0 mm
Wave length:IR 950 nm
Beam separation:40 mm
Inputs:Teach input
Optical light exit:Flat
Protection class:III
Working range:3 m
Number of beams:8
Output load inductive:1 H
Configuration:Without teach button with configuration software
Switching frequency:500 kHz
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Weight:40 g
Alignment aid:Without alignment aid
Supply voltage Vs:DC 24 V, ± 20 %
Dimensions (W x H x D):25 mm x 352.4 mm x 8 mm
Switching output:1 x PNP
