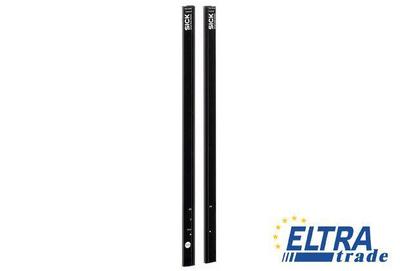

Sick SAS4-F044P3PS1T00 Switching automation light grids

Sick SAS4-F044P3PS1T00
Item Number: SAS4-F044P3PS1T00
  • Variable monitoring lengths from 120 mm up to 1,400 mm (in 160 mm increments)
  • Maximum range 10 m
  • Response time 18 ms
Total price: 418.86
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1045020
Initialization time:1 s
Output current Imax.:100 mA
Ambient temperature:Operation: -25 ... +55 °C
Storage: -25 ... +70 °C
Power consumption sender :112 mA
Beam separation:40 mm
Aluminum stabilizer:Without stabilizer
Housing material:PMMA
Switching frequency:500 kHz
Working range:3 m
Enclosure rating:IP 65
Protection class:III
Supply voltage Vs :DC 24 V, ± 20 %
EMC:EN 60947-5-2
Wave length:IR 950 nm
Number of beams:12
Cross beam/parallel beam:Parallel beam active
Ripple:< 5 Vpp
Weight:60 g
Shock load:10 g / DIN EN 60068-2-29 / 16 ms
Alignment aid:Without alignment aid
Minimum detectable object (MDO):Parallel beam, 45 mm
Optical light exit:Flat
Power consumption receiver :70 mA
Inputs:Teach input
Dimensions (W x H x D):25 mm x 512.4 mm x 8 mm
Minimum range:Parallel beam: ≥0 mm
Configuration:Teach button with configuration software
Switching output:1 x PNP
Circuit protection:Output Q short-circuit protected
Interference suppression
VS connections reverse-polarity protected
Muting function:Muting function inactive
Automatic teach:Automatic teach inactive
Output load inductive:1 H
Response time:Parallel beam 19 ms
Output load capacitive:100 nF
Connection type:Short cable with connector M8, 4-pin
Ambient light safety:Direct: ≥100,000 lx, Indirect: ≥150,000 lx
Vibration resistance:5 g, 10 Hz ... 55 Hz (IEC 68-2-6)
Output 1:Output 1 active, if light beam interrupted
Maximum range:4 m
Detection height:440 mm
Task:Switching light grid
