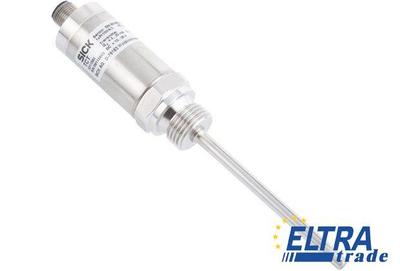

Sick TCT-1AAG10253MZ Temperature sensors

Sick TCT-1AAG10253MZ
Item Number: TCT-1AAG10253MZ
  • Pt100 element, accuracy class A according to IEC 60751
  • Measuring ranges -50 °C ... 150 °C and -50 °C … 250 °C
  • Wetted parts made from corrosion resistant stainless steel 316L
210.06
Quantity
-
+
Total price: 210.06
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6043210
Electrical connection/enclosure rating :Plug M12 x 1, 4-pin, IP 67
Transmitter linearity:≤ 0.1 % of span
Housing material:Stainless steel 1.4571
Ambient temperature:-40 °C ... 85 °C
Wetted parts:Stainless steel 1.4571
Process connection:Thread G 1/4 B
Pressure resistance:Max. 120 bar
Measuring current:0.3 mA ... 1 mA
Protection class III:+
Accuracy of sensor element:Class A according to IEC 60751
Insertion length/diameter of probe:25 mm / 3 mm
Transmitter accuracy:≤ ± 0.2 % of span
Signal output and maximum ohmic load RA:4 mA ... 20 mA, 2-wire (RA <= (L+ - 9 V) / 0.023 A [Ohm])
Electrical safety:Protection class: III, dielectric strength: 500 V, reverse polarity protection: L+ towards M
Sensor element:Pt100
Vibration resistance according to IEC 60751:3 g
CE-conformity:2004/108/EC, EN 61326-2-3
Shock resistance according to IEC 60751:500 g
Weight:Ca. 145 g (depending on configuration)
Supply voltage:10 V DC ... 36 V DC for variant with transmitter 4 mA ... 20 mA
Measuring range:-50 °C ... 150 °C
Storage and transport temperature:-40 °C ... 85 °C
