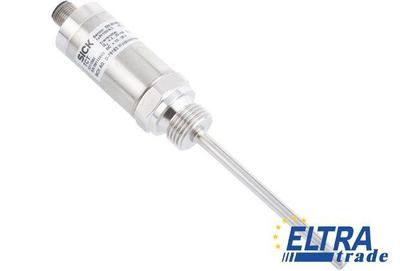

Sick TCT-1PAG10253MZ Temperature sensors

Sick TCT-1PAG10253MZ
Item Number: TCT-1PAG10253MZ
  • Pt100 element, accuracy class A according to IEC 60751
  • Measuring ranges -50 °C ... 150 °C and -50 °C … 250 °C
  • Wetted parts made from corrosion resistant stainless steel 316L
144.23
Quantity
-
+
Total price: 144.23
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6043164
Wetted parts:Stainless steel 1.4571
Sensor element:Pt100
Weight:Ca. 145 g (depending on configuration)
Supply voltage:10 V DC ... 36 V DC for variant with transmitter 4 mA ... 20 mA
Ambient temperature:-40 °C ... 125 °C
Electrical safety:Protection class: III, dielectric strength: 500 V
Process connection:Thread G 1/4 B
Housing material:Stainless steel 1.4571
Measuring current:0.3 mA ... 1 mA
Vibration resistance according to IEC 60751:3 g
Electrical connection/enclosure rating :Plug M12 x 1, 4-pin, IP 67
Insertion length/diameter of probe:25 mm / 3 mm
Shock resistance according to IEC 60751:500 g
Accuracy of sensor element:Class A according to IEC 60751
Pressure resistance:Max. 120 bar
Storage and transport temperature:-40 °C ... 85 °C
Measuring range:-50 °C ... 150 °C
Output signal:Pt100, 4-wire
Protection class III:+
CE-conformity:2004/108/EC, EN 61326-2-3
