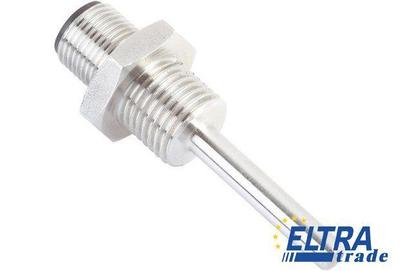

Sick TSP-1PAG10305MZ Temperature sensors

Sick TSP-1PAG10305MZ
Item Number: TSP-1PAG10305MZ
  • Platinum element (Pt100 or Pt1000, 2-wire), accuracy class B according to IEC 60751
  • Measuring range -30 °C ... +130 °C
  • Various connection threads and insertion lengths
49.37
Quantity
-
+
Total price: 49.37
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number6042938
Accuracy of sensor element:Class B according to IEC 60751
Storage and transport temperature:-40 °C ... 85 °C
Ambient temperature:-40 °C ... 100 °C
Sensor element:Pt100
Measuring range:-30 °C ... 130 °C
Output signal:Pt100, 2-wire
Shock resistance according to IEC 60751:500 g
Insertion length/diameter of probe:30 mm / 5 mm
Process connection:Thread G 1/4 B
Vibration resistance according to IEC 60751:3 g
Electrical safety:Dielectric strength: 500 V AC
Protection class: III
Measuring current:0.3 mA ... 1 mA
Housing material:Stainless steel 1.4305
Weight:Ca. 30 g (depending on configuration)
Electrical connection/enclosure rating :Plug M12 x 1, 4-pin, IP 67
Wetted parts:Stainless steel 1.4305
