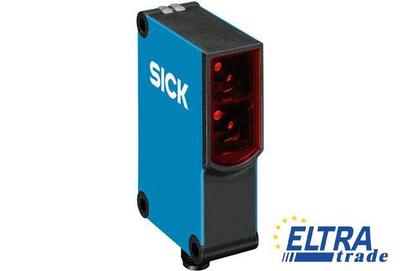

Sick WL27-3S3731S03 Photoelectric Sensors W27

Sick WL27-3S3731S03
Item Number: WL27-3S3731S03
  • Long sensing range with a high operating reserve
  • Quick alignment with red emitting LED
  • Resistant to ambient noise such as crosstalk from another sensor
198.20
Quantity
-
+
Total price: 198.20
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1029145
Type of light:Visible red light
Sensing range max.:0.1 m ... 15 m
Supply voltage:24 V AC/DC ... 240 V AC/DC
Housing design (light emission):Rectangular
Polarisation filter:+
Circuit protection:A, C
Switching output:Relay, electrically isolated
Usage category:AC-15, DC-13, According to EN 60947-1
Special device:+
UL File No.:NRKH.E181493 & NRKH7.E181493
Sensor/detection principle:Photoelectric retro-reflective sensor, Standard optics
Weight:140 g
Ambient operating temperature:-40 °C ... +60 °C
Switching current (switching voltage):0.11 A (250 V DC), 3 A (24 V DC), 3 A (250 V AC)
Light source:LED
Ambient storage temperature:-40 °C ... +75 °C
Switching mode:Dark switching
Output function:Change-over contacts
Enclosure rating:IP 66
IP 67
Dimensions (W x H x D):24.6 mm x 80.6 mm x 54 mm
Sensing range:0.1 m ... 11 m
Light spot size (distance):Ø 220 mm (10 m)
Switching frequency:10 Hz
Connection type:Cable with connector Q7, 7-pin, AC/UC-coding, 150 mm
Wave length:660 nm
Housing material:ABS, Plastic
Power consumption:≤ 2.5 VA
Cable material:PVC
Protection class:II
Optics material:PMMA
Angle of dispersion:Ca. 1.5 °
Adjustment:Potentiometer
Response time:≤ 10 ms
