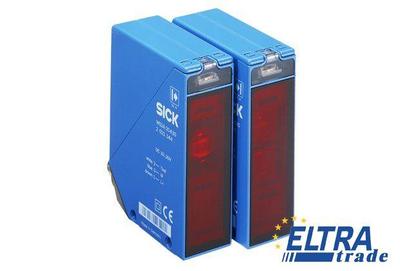

Sick WS/WE24-2V230 Long-range sensor W24

Sick WS/WE24-2V230
Item Number: WS/WE24-2V230
  • Long sensing range with high operating reserve
  • Metal housing that has been IP 69k tested
  • Switch selectable PNP or NPN output
339.77
Quantity
-
+
Total price: 339.77
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017876
Sensing range max.:0 m ... 60 m
Front screen heating:-
UL File No.:NRKH.E181493 & NRKH7.E181493
Test input sender off:TE to 0 V
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Adjustment:Potentiometer
Ambient storage temperature:-40 °C ... +75 °C
Supply voltage:10 V DC ... 30 V DC
Optics material:PMMA
Special device:-
Angle of reception:Ca. 2.5 °
Switching mode:Light/dark switching
Light spot size (distance):Ø 700 mm (50 m)
Light source:LED
Alarm output:+
Type of light:Visible red light
Sensor/detection principle:Through-beam photoelectric sensor
Protection class:II
Switching output:NPN, PNP
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Ambient operating temperature:-40 °C ... +60 °C
Switching frequency:1,000 Hz
Housing design (light emission):Rectangular
Weight:660 g
Output current Imax.:100 mA
Circuit protection:A, C, D
Sensing range:0 m ... 50 m
Response time:≤ 500 µs
Housing material:Metal, Zinc diecast
Power consumption, receiver:40 mA
Connection type:Terminal connection with M16 gland
Ripple:< 5 Vpp
Enclosure rating:IP 69K
Power consumption, sender:50 mA
Angle of dispersion:Ca. 1 °
