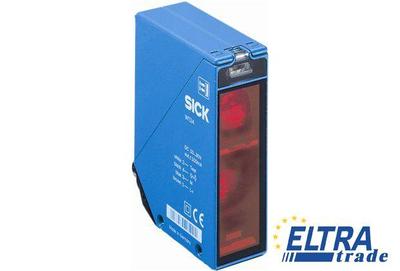

Sick WT24-2B220 Long-range sensor W24

Sick WT24-2B220
Item Number: WT24-2B220
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
290.69
Quantity
-
+
Total price: 290.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017882
Front screen heating:+
Time type:On delay
off delay
Optics material:PMMA
Weight:330 g
Type of light:Infrared light
Response time:≤ 500 µs
Ambient storage temperature:-40 °C ... +75 °C
Sensing range max.:100 mm ... 2,500 mm
Test input sender off:TE to 0 V
Circuit protection:A, C, D
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Light spot size (distance):Ø 80 mm (2,500 mm)
Power consumption:≤ 150 mA
Supply voltage:10 V DC ... 30 V DC
Housing material:Metal, Zinc diecast
Switching frequency:1,000 Hz
Output current Imax.:≤ 100 mA
Switching output:NPN, PNP
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Adjustment:Potentiometer
Enclosure rating:IP 69K
Ripple:< 5 Vpp
Light source:LED
Ambient operating temperature:-40 °C ... +60 °C
Housing design (light emission):Rectangular
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Alarm output:-
Protection class:II
Switching mode:Light/dark switching
Connection type:Terminal connection with M16 gland
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Sensing range:100 mm ... 2,500 mm
