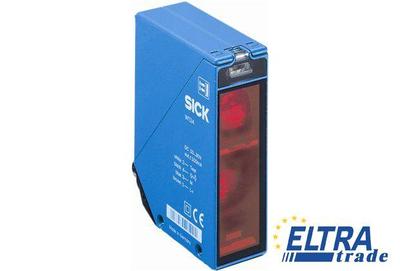

Sick WT24-2B240 Long-range sensor W24

Sick WT24-2B240
Item Number: WT24-2B240
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
267.09
Quantity
-
+
Total price: 267.09
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017813
Supply voltage:10 V DC ... 30 V DC
Ripple:< 5 Vpp
Test input sender off:TE to 0 V
Circuit protection:A, C, D
Switching frequency:1,000 Hz
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Protection class:II
Ambient operating temperature:-40 °C ... +60 °C
Alarm output:-
Switching output:NPN, PNP
Power consumption:≤ 50 mA
Optics material:PMMA
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Sensing range:100 mm ... 1,200 mm
Ambient storage temperature:-40 °C ... +75 °C
Type of light:Visible red light
Light source:LED
Sensing range max.:100 mm ... 1,200 mm
Enclosure rating:IP 69K
Response time:≤ 500 µs
Housing design (light emission):Rectangular
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Housing material:Metal, Zinc diecast
Switching mode:Light/dark switching
Output current Imax.:≤ 100 mA
Adjustment:Potentiometer
Connection type:Terminal connection with M16 gland
Weight:330 g
Light spot size (distance):Ø 40 mm (1,200 mm)
