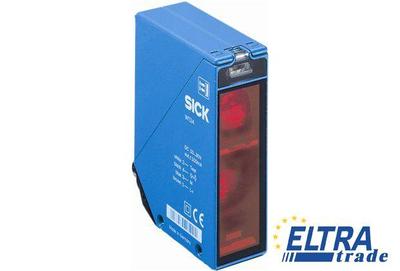

Sick WT24-2B240S13 Long-range sensor W24

Sick WT24-2B240S13
Item Number: WT24-2B240S13
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
304.84
Quantity
-
+
Total price: 304.84
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1022293
Light spot size (distance):Ø 40 mm (1,200 mm)
Supply voltage:10 V DC ... 30 V DC
Test input sender off:TE to 0 V
Switching frequency:1,000 Hz
Optics material:Glass
Output current Imax.:≤ 100 mA
Housing material:Metal, Zinc diecast
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Power consumption:≤ 50 mA
Ambient operating temperature:-40 °C ... +60 °C
Circuit protection:A, C, D
Protection class:II
Ambient storage temperature:-40 °C ... +75 °C
Adjustment:Potentiometer
Sensing range:100 mm ... 1,200 mm
Light source:LED
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching mode:Light/dark switching
Special features:Front lense made of glass
Sensing range max.:100 mm ... 1,200 mm
Enclosure rating:IP 67
Ripple:< 5 Vpp
Type of light:Visible red light
Connection type:Terminal connection with M16 gland
Switching output:NPN, PNP
Weight:350 g
Special device:+
Alarm output:-
Response time:≤ 500 µs
Housing design (light emission):Rectangular
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
