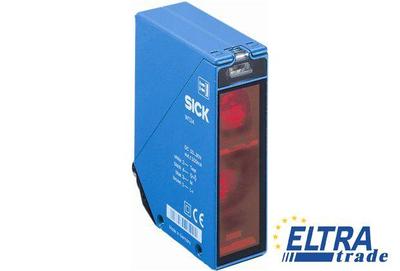

Sick WT24-2B420S22 Long-range sensor W24

Sick WT24-2B420S22
Item Number: WT24-2B420S22
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
Total price: 309.56
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Sick WT24-2B420S22 is outdated.


Part Number1029268
Weight:330 g
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Sensing range max.:300 mm ... 900 mm
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Sensing range:300 mm ... 900 mm
Light source:LED
Ambient storage temperature:-40 °C ... +75 °C
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Enclosure rating:IP 67
Supply voltage:10 V DC ... 30 V DC
Connection type:Connector M12, 4-pin
Light spot size (distance):Ø 80 mm (2,500 mm)
Protection class:II
Ripple:< 5 Vpp
Output current Imax.:≤ 100 mA
Optics material:PMMA
Housing design (light emission):Rectangular
Special features:Partly covered front lense, With improved protection against vibration
Switching mode:Light/dark switching
Circuit protection:A, C, D
Housing material:Metal, Zinc diecast
Response time:≤ 500 µs
Switching output:NPN, PNP
Power consumption:≤ 150 mA
Ambient operating temperature:-40 °C ... +60 °C
Type of light:Infrared light
Test input sender off:TE to 0 V
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Front screen heating:+
Alarm output:-
Special device:+
Time type:On delay
off delay
Switching frequency:1,000 Hz
