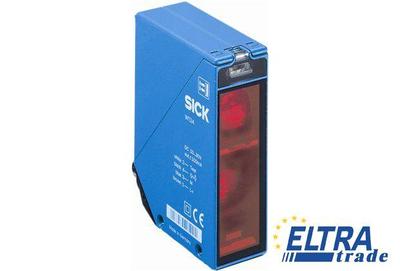

Sick WT24-2R210S11 Long-range sensor W24

Sick WT24-2R210S11
Item Number: WT24-2R210S11
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
290.69
Quantity
-
+
Total price: 290.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1019359
Optics material:PMMA
Supply voltage:12 V DC ... 240 V DC24 V AC ... 240 V AC
Sensing range:1,200 mm ... 1,600 mm
Usage category:AC-15, DC-13, According to EN 60947-1
Enclosure rating:IP 67
Type of light:Infrared light
Housing design (light emission):Rectangular
Sensing range max.:100 mm ... 2,000 mm
Protection class:II
Switching frequency:10 Hz
Special device:+
Power consumption:< 2 VA
Special features:The scanning range can be adjusted only between 1200...1600 mm, Very resistant against shock and vibration
Output function:Change-over contacts
Light spot size (distance):Ø 80 mm (2,500 mm)
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Circuit protection:A, C
Adjustment:Potentiometer
Ambient operating temperature:-40 °C ... +60 °C
Switching output:Relay, electrically isolated
Response time:≤ 10 ms
Switching mode selector:Selectable via light/dark selector
Alarm output:-
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Light source:LED
Weight:330 g
Switching mode:Light/dark switching
Housing material:Metal, Zinc diecast
Switching current (switching voltage):4 A (24 V DC), 4 A (250 V AC)
Ambient storage temperature:-40 °C ... +75 °C
Connection type:Terminal connection with M16 gland
