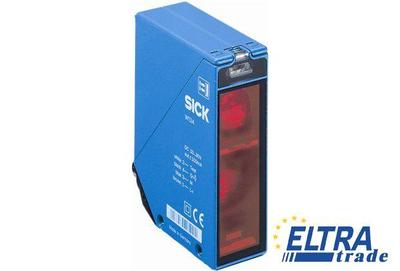

Sick WT24-2R240 Long-range sensor W24

Sick WT24-2R240
Item Number: WT24-2R240
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
Total price: 290.69
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1017854
Type of light:Visible red light
Switching mode selector:Selectable via light/dark selector
Light spot size (distance):Ø 40 mm (1,200 mm)
Switching frequency:10 Hz
Light source:LED
Optics material:PMMA
Sensing range max.:100 mm ... 1,200 mm
Housing material:Metal, Zinc diecast
Protection class:II
Switching output:Relay, electrically isolated
Power consumption:< 2 VA
Sensing range:100 mm ... 1,200 mm
Switching current (switching voltage):4 A (24 V DC), 4 A (250 V AC)
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching mode:Light/dark switching
Weight:330 g
Enclosure rating:IP 69K
Response time:≤ 10 ms
Output function:Change-over contacts
Ambient storage temperature:-40 °C ... +75 °C
Connection type:Terminal connection with M16 gland
Housing design (light emission):Rectangular
Alarm output:-
Usage category:AC-15, DC-13, According to EN 60947-1
Circuit protection:A, C
Supply voltage:12 V DC ... 240 V DC24 V AC ... 240 V AC
Ambient operating temperature:-40 °C ... +60 °C
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
