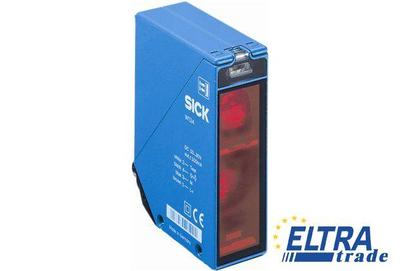

Sick WT24-2R250 Long-range sensor W24

Sick WT24-2R250
Item Number: WT24-2R250
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
312.40
Quantity
-
+
Total price: 312.40
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1016820
Housing material:Metal, Zinc diecast
Ambient operating temperature:-40 °C ... +60 °C
Power consumption:< 3 VA
Usage category:AC-15, DC-13, According to EN 60947-1
Switching mode selector:Selectable via light/dark selector
Housing design (light emission):Rectangular
Switching frequency:10 Hz
Sensing range:100 mm ... 1,200 mm
Time type:On delay
off delay
Adjustment:Potentiometer
Alarm output:-
Sensing range max.:100 mm ... 1,200 mm
Output function:Change-over contacts
Ambient storage temperature:-40 °C ... +75 °C
Response time:≤ 10 ms
Supply voltage:12 V DC ... 240 V DC24 V AC ... 240 V AC
Circuit protection:A, C
Connection type:Terminal connection with M16 gland
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Light source:LED
Front screen heating:+
Enclosure rating:IP 69K
Switching current (switching voltage):4 A (24 V DC), 4 A (250 V AC)
Switching output:Relay, electrically isolated
Optics material:PMMA
Weight:330 g
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Light spot size (distance):Ø 40 mm (1,200 mm)
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching mode:Light/dark switching
Protection class:II
Type of light:Visible red light
