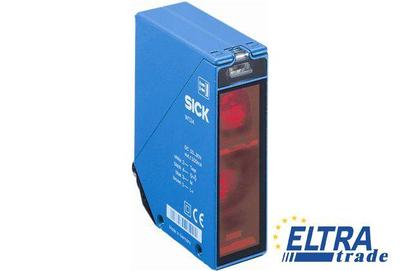

Sick WT24-2V250 Long-range sensor W24

Sick WT24-2V250
Item Number: WT24-2V250
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
295.41
Quantity
-
+
Total price: 295.41
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1017887
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Protection class:II
Optics material:PMMA
Light spot size (distance):Ø 40 mm (1,200 mm)
Enclosure rating:IP 69K
Housing material:Metal, Zinc diecast
Supply voltage:10 V DC ... 30 V DC
Alarm output:+
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching frequency:1,000 Hz
Time type:On delay
off delay
Adjustment:Potentiometer
Light source:LED
Front screen heating:+
Power consumption:≤ 150 mA
Circuit protection:A, C, D
Ambient operating temperature:-40 °C ... +60 °C
Housing design (light emission):Rectangular
Switching output:NPN, PNP
Ripple:< 5 Vpp
Response time:≤ 500 µs
Type of light:Visible red light
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Sensing range max.:100 mm ... 1,200 mm
Sensing range:100 mm ... 1,200 mm
Ambient storage temperature:-40 °C ... +75 °C
Switching mode:Light/dark switching
Test input sender off:TE to 0 V
Connection type:Terminal connection with M16 gland
Output current Imax.:≤ 100 mA
Weight:330 g
