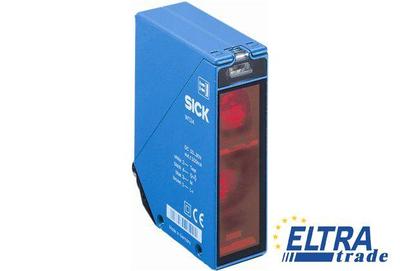

Sick WT24-2V510 Long-range sensor W24

Sick WT24-2V510
Item Number: WT24-2V510
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
Total price: 282.19
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments


Part Number1017855
Type of light:Infrared light
Weight:330 g
Ambient operating temperature:-40 °C ... +60 °C
Optics material:PMMA
Housing material:Metal, Zinc diecast
Switching frequency:1,000 Hz
Light source:LED
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Ripple:< 5 Vpp
Supply voltage:10 V DC ... 30 V DC
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Connection type:Male connector M12, 5-pin
Response time:≤ 500 µs
Alarm output:+
Protection class:II
Ambient storage temperature:-40 °C ... +75 °C
Test input sender off:TE to 0 V
Housing design (light emission):Rectangular
Circuit protection:A, C, D
Switching mode:Light/dark switching
Sensing range max.:100 mm ... 2,500 mm
Sensing range:100 mm ... 2,500 mm
Light spot size (distance):Ø 80 mm (2,500 mm)
Output current Imax.:≤ 100 mA
Power consumption:≤ 50 mA
Switching output:NPN, PNP
Enclosure rating:IP 69K
