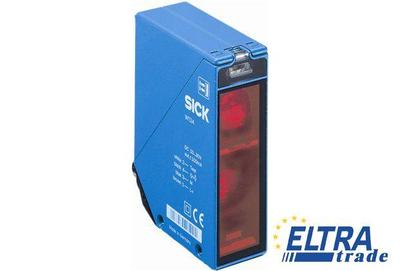

Sick WT24-2V510S15 Long-range sensor W24

Sick WT24-2V510S15
Item Number: WT24-2V510S15
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
304.84
Quantity
-
+
Total price: 304.84
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1023637
Housing material:Metal, Zinc diecast
Light source:LED
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Response time:≤ 500 µs
Light spot size (distance):Ø 80 mm (2,500 mm)
Ripple:< 5 Vpp
Special features:PIN 2 and PIN 5 exchanged
Circuit protection:A, C, D
Test input sender off:TE to 0 V
Optics material:PMMA
Housing design (light emission):Rectangular
Adjustment:Potentiometer
Switching output:NPN, PNP
Output current Imax.:≤ 100 mA
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Ambient operating temperature:-40 °C ... +60 °C
Special device:+
Enclosure rating:IP 67
Supply voltage:10 V DC ... 30 V DC
Type of light:Infrared light
Ambient storage temperature:-40 °C ... +75 °C
Switching frequency:1,000 Hz
Alarm output:+
Protection class:II
Sensing range:100 mm ... 2,500 mm
Sensing range max.:100 mm ... 2,500 mm
Connection type:Male connector M12, 5-pin
Power consumption:≤ 50 mA
Weight:350 g
Switching mode:Light/dark switching
