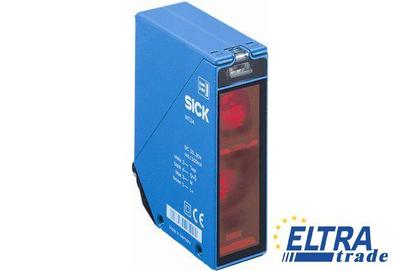

Sick WT24-2V550S12 Long-range sensor W24

Sick WT24-2V550S12
Item Number: WT24-2V550S12
  • Precise background suppression at ranges up to 2500 mm
  • Immune to ambient light and crosstalk from another photoelectric sensor
  • Switch selectable PNP or NPN output, Switch selectable Light or Dark operating mode
354.87
Quantity
-
+
Total price: 354.87
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1019468
Dimensions (W x H x D):27 mm x 87.5 mm x 65 mm
Switching mode selector:Selectable via light/dark selector, Selectable via NPN/PNP selector
Optics material:Glass
Weight:350 g
Type of light:Visible red light
Response time:≤ 500 µs
Output current Imax.:≤ 100 mA
Circuit protection:A, C, D
Special device:+
Delay time:Adjustable via time delay selector switch: 0.5 ... 10 s
Test input sender off:TE to 0 V
Special features:Dynamic front lense heating
Adjustment:Potentiometer
Connection type:Male connector M12, 5-pin
Ripple:< 5 Vpp
Protection class:II
Light source:LED
Switching mode:Light/dark switching
Light spot size (distance):Ø 40 mm (1,200 mm)
Sensing range:100 mm ... 1,200 mm
Ambient operating temperature:-40 °C ... +60 °C
Ambient storage temperature:-40 °C ... +75 °C
Switching frequency:± 1,000 Hz
Front screen heating:+
Switching output:NPN, PNP
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Sensing range max.:100 mm ... 1,200 mm
Enclosure rating:IP 67
Housing material:Metal, Zinc diecast
Alarm output:+
Housing design (light emission):Rectangular
Power consumption:≤ 150 mA
Supply voltage:10 V DC ... 30 V DC
Time type:On delay
off delay
