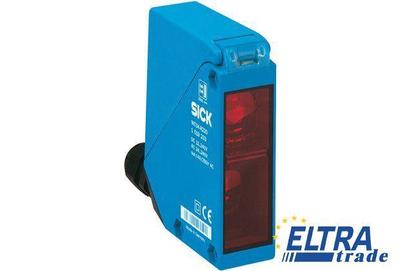

Sick WT34-V240
Item Number: WT34-V240
  • Precise background suppression at long ranges
  • Immune to ambient light and crosstalk from another sensor
  • Switch selectable PNP or NPN output and light/dark switching
220.85
Quantity
-
+
Total price: 220.85
Contact our experts
  • Overview
  • Datasheet
  • Alternative numbers
  • PDF
  • Comments

Specification:

Part Number1019227
Switching mode:Dark switching, Light switching
Weight:140 g
Supply voltage:10 V DC ... 30 V DC
Sensing range:100 mm ... 1,200 mm
Switching mode selector:Selectable via light/dark selector, Selectable via PNP/NPN selector
Sensing range max.:100 mm ... 1,200 mm
Type of light:Visible red light
Wave length:660 nm
Special device:-
Ripple:< 5 Vpp
Switching frequency:1,000 Hz
Connection type:Terminal connection with M16 gland
Power consumption:≤ 50 mA
Housing design (light emission):Rectangular
UL File No.:NRKH.E181493 & NRKH7.E181493
Sensor/detection principle:Photoelectric proximity sensor, Background suppression
Switching output:NPN, PNP
Light spot size (distance):Ø 40 mm (1,200 mm)
Enclosure rating:IP 67
Ambient storage temperature:-40 °C ... +75 °C
Test input sender off:TE to 0 V
Alarm output:+
Response time:≤ 500 µs
Output current Imax.:100 mA
Ambient operating temperature:-40 °C ... +60 °C
Dimensions (W x H x D):27 mm x 92 mm x 70 mm
Circuit protection:A, C, D
Adjustment:Potentiometer
Housing material:ABS, Plastic
Light source:LED
Protection class:II
